Teach Line Flat Film Lines – cast film line & smoothing calenderSmoothing, laminating, casting, drawing.

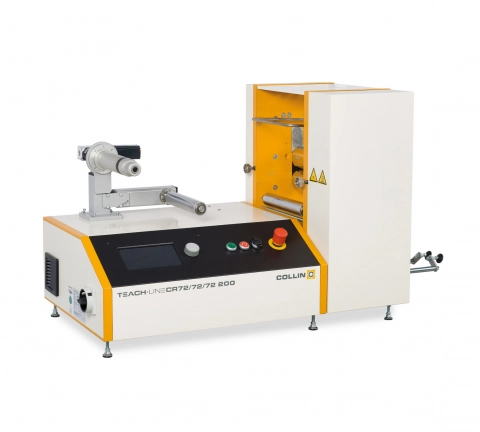

TEACH•LINE 2

In compact design, this line unites the well-known functions of a cast film line with those of a small smoothing calender.

Via pneumatic cylinders, the upper of the three rolls is designed to be moveable and enables to smooth films. The gap width can finely be adjusted. If the upper roll is swivelled up, the unit can be used for casting of thin films. For exact temperature control, all three rolls are designed for liquid tempering by water. The roll surface is hard chrome plated and polished.

Advantages

  • Function of a cast film line with a smoothing calender
  • Compact table-top machine
  • Ideal for trainings and tests
  • Short delivery times
  • Modularity, extensibility with other COLLIN Teach Line lines

Applications

  • Smoothing films
  • Laminating films
  • Casting low-viscosity masses with a vertical die

Control
The control runs via a 7″ touch display (CMI 7) with operating keys as well as a data wheel

Customers

  • Compounding and refining companies
  • Processing companies
  • Apprenticeship employers and research institutes
  • Masterbatch manufacturers
  • Companies in the medical sector
  • Pharmaceutical companies

COLLIN Teach Line overview

Click here for further Teach Line table-top machines

>>>

Ask for an offer

>>>

After Sales & Service Team Contact

Overview COLLIN flat film lines:

leer

Flat film lines with 3 rolls

Smoothing calender & chill roll for horizontal resp. vertical use

<<<

Flat film lines with 2 rolls

For cast films with different thickness

<<<

leer

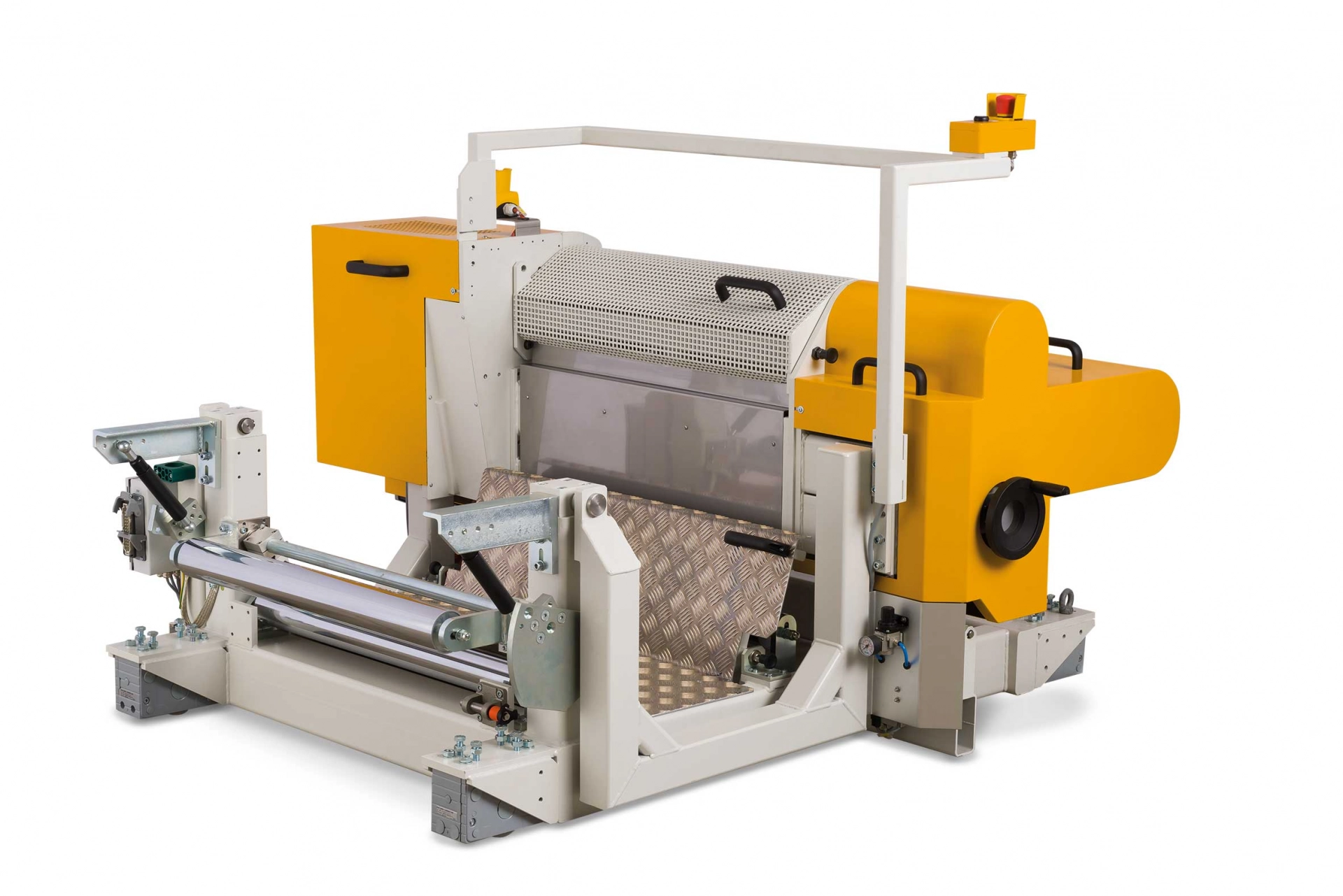

Pilot Line flat film lines
